Terminal GIS

Laurențiu Nicola

Motivation

Have a some workflows that take a lot of input data (~1 TB)
Running on cloud VMs (that's where the input data is)
Outputs are sometimes in the 100 GB range
Downloading that amount of data will take a while
I dislike waiting for scp at 8 MB/s
sshfs doesn't help

What to do?

I have a terminal and SSH session open anyway, can I do anything with it?
Maybe even… view my data?

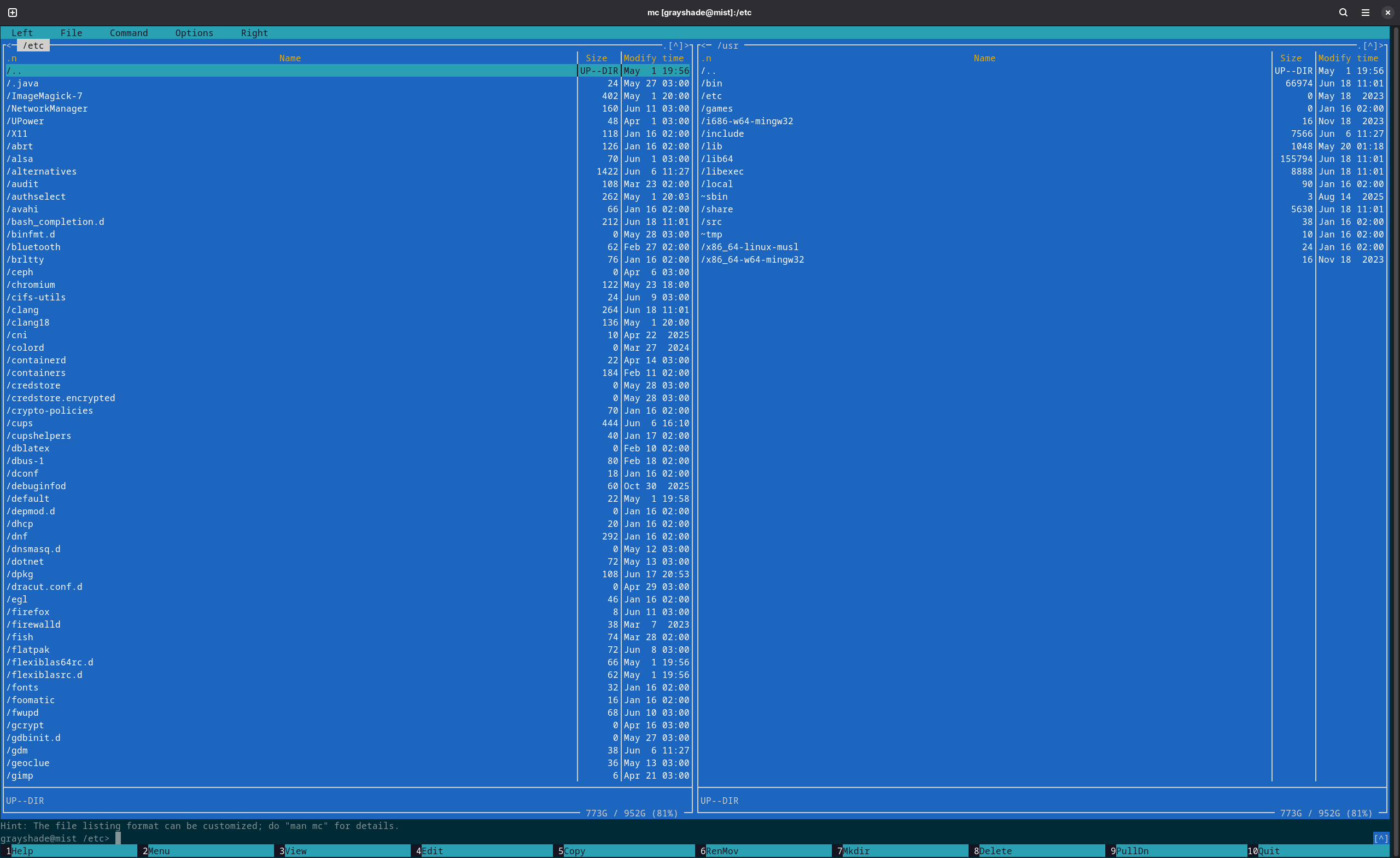

Terminals?

Images!

Terminals, how do they work?

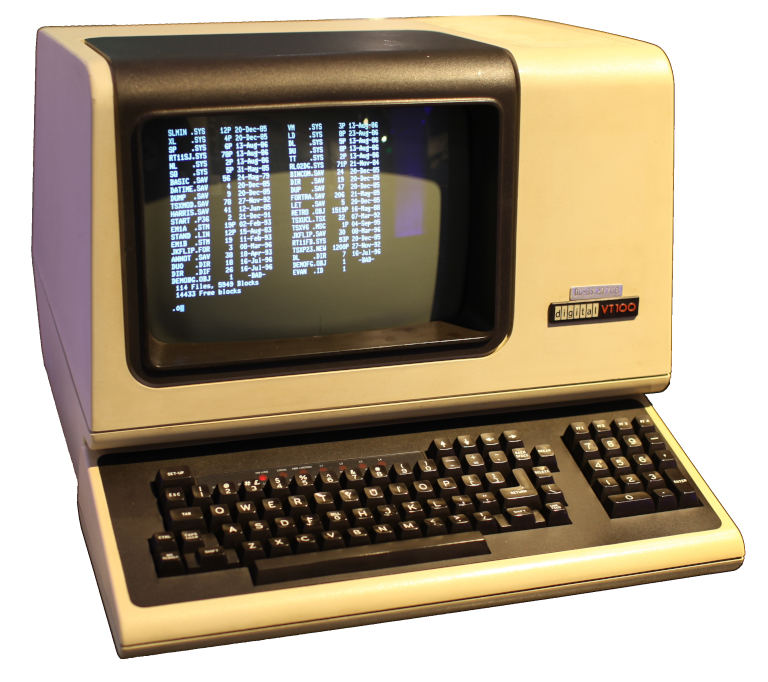

Source: DEC VT100 on Wikipedia

ANSI escape sequences

Made popular by the DEC VT100 terminal (1978)
C0 control codes: \n, \r, \x1b (ESC)
ESC [ (CSI)
CSI n m (SGR)

CSI 1 m (bold / high intensity), CSI 31 m (red foreground), CSI 34 m (blue foreground)

Can combine multiple SGR codes using ;

\x1b[31mHello, \x1b[1;34mworld

ANSI escape sequences

Dozens of them, Wikipedia has a nice list

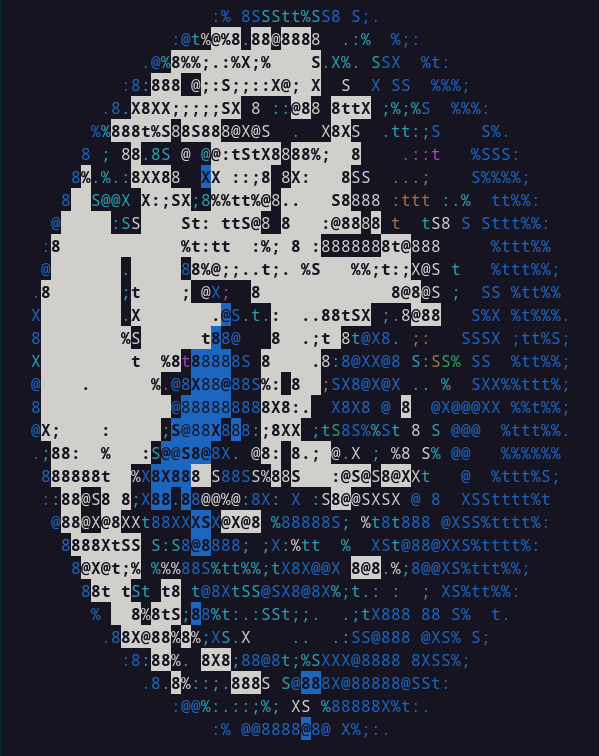

Blink, cursor movement, strikethrough, subscript

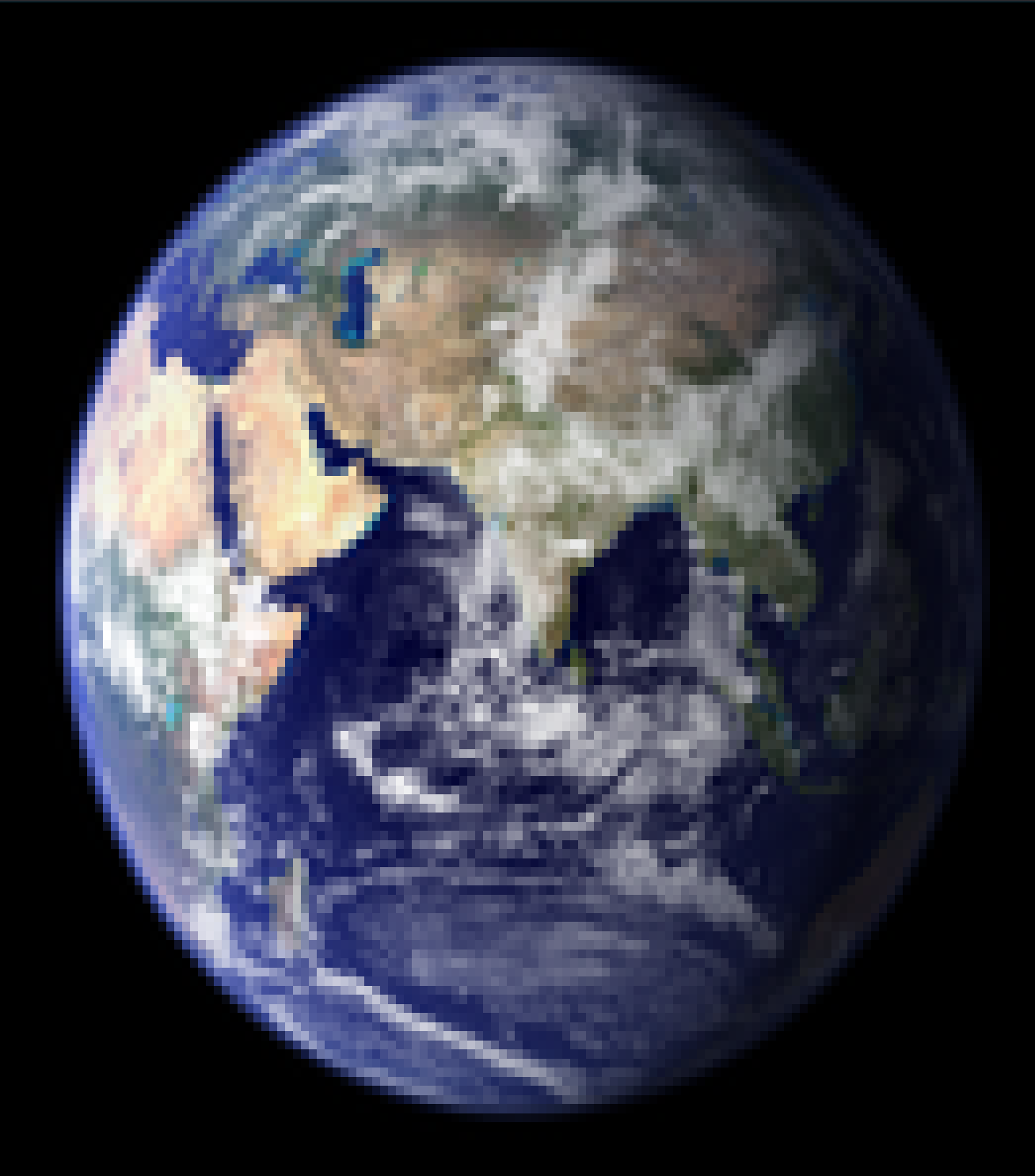

4-, 8-, later 24-bit colors
More or less compatible with modern terminals
If you're running tmux under screen, good luck
Good luck anyway, because color themes are awful these days

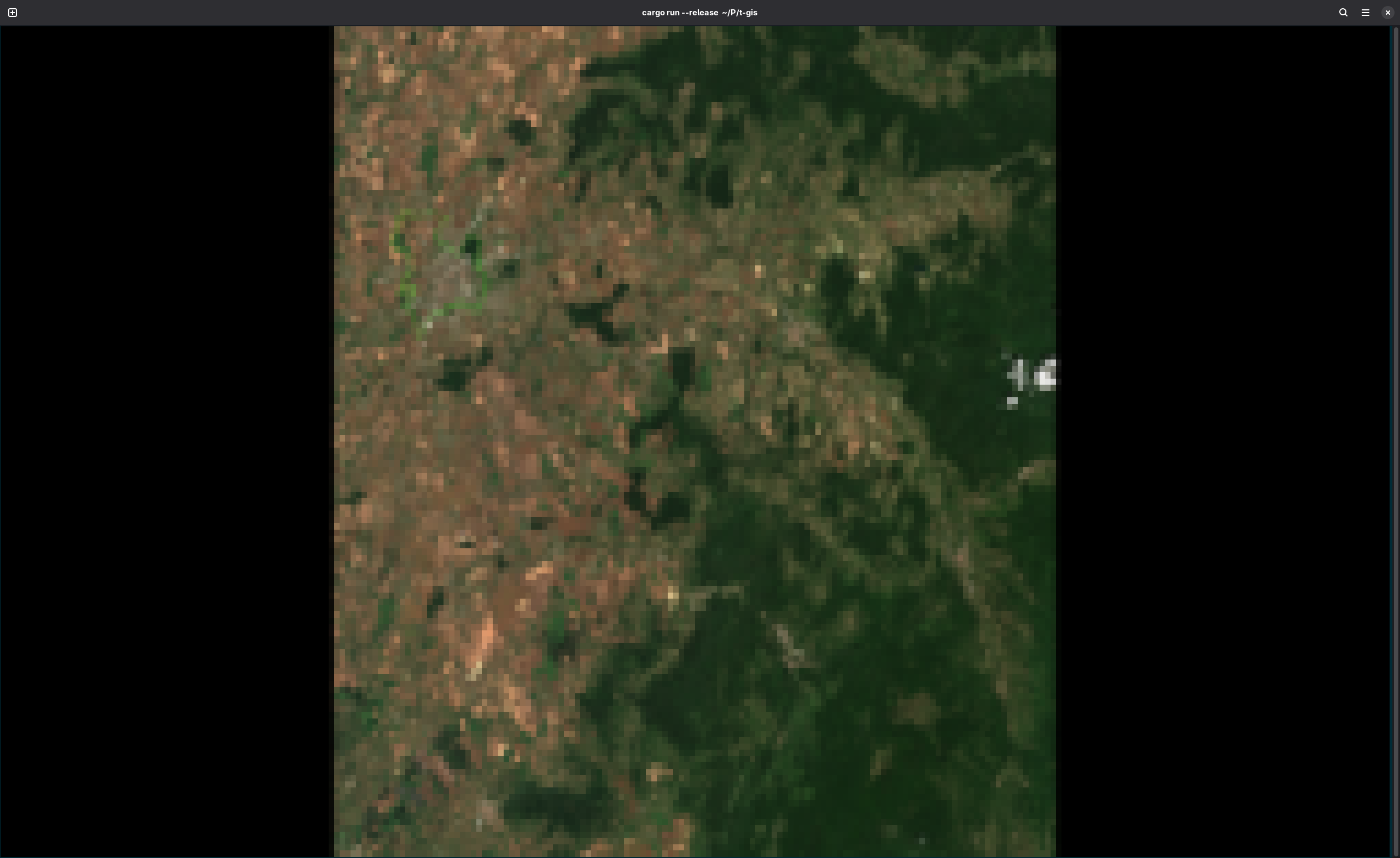

True color and other tricks

Modern image protocols

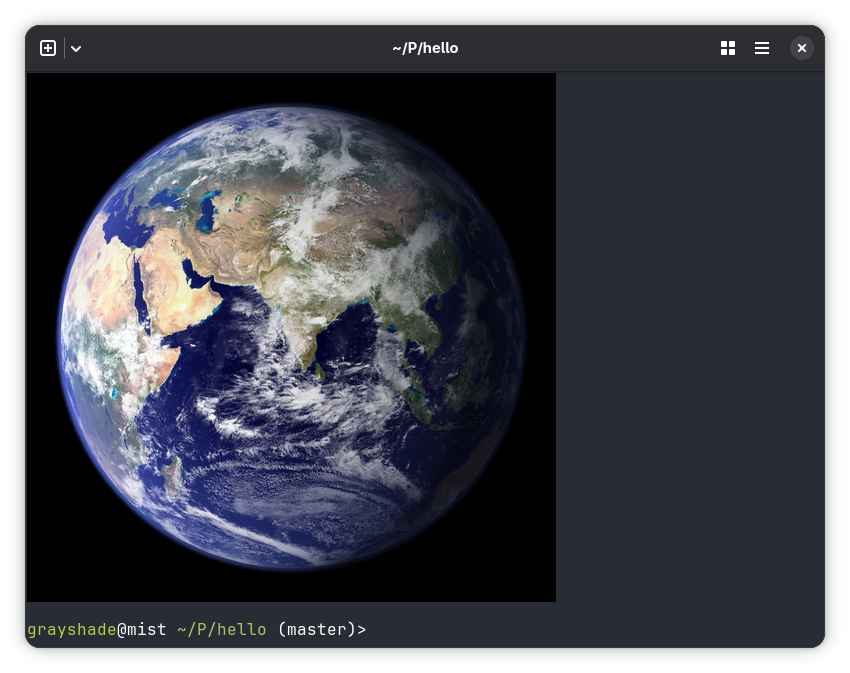

Some terminals support real images: iTerm2, Kitty protocols
3 KB chunks encoded as base64

                            <ESC>_Ga=T,s=100,v=30,m=1;<first chunk><ESC>\
<ESC>_Gm=1;<second chunk><ESC>\
<ESC>_Gm=0;<last chunk><ESC>\

A gentle introduction to Rust

#[derive(Copy)]
struct TermSize {
    rows: u16,
    width_px: u16,
    height_px: u16,
}

fn terminal_size() -> Result<TermSize, Error> {
    let mut ws = winsize {
        ws_row: 0,
        ws_col: 0,
        ws_xpixel: 0,
        ws_ypixel: 0,
    };
    if unsafe { ioctl(STDOUT_FILENO, TIOCGWINSZ, &mut ws) } != 0 {
        return Err(Error::last_os_error());
    }
    if ws.ws_xpixel == 0 || ws.ws_ypixel == 0 {
        return Err(Error::new(
            ErrorKind::Unsupported,
            "terminal does not support TIOCGWINSZ",
        ));
    }
    Ok(TermSize {
        rows: ws.ws_row,
        width_px: ws.ws_xpixel,
        height_px: ws.ws_ypixel,
    })
}

Displaying an image

let dataset = Dataset::open(image_path)?;
let src_size = dataset.raster_size();

let term = terminal_size()?;
let dst_size = compute_size(term, src_size);
let data = dataset.read_raster_interleaved((0, 0), src_size, dst_size, &[1, 2, 3])?;

let chunks = data.chunks(3072);
let total_chunks = chunks.len();

let mut stdout = io::stdout().lock();
for (i, chunk) in chunks.enumerate() {
    let m = if i == total_chunks - 1 { 0 } else { 1 };
    if i == 0 {
        write!(
            stdout,
            "\x1b_Ga=T,f=24,s={},v={},m={};",
            dst_size.0, dst_size.1, m
        )?;
    } else {
        write!(stdout, "\x1b_Gm={};", m)?;
    }
    {
        let mut encoder = EncoderWriter::new(&mut stdout, &STANDARD);
        encoder.write_all(chunk)?;
        encoder.finish()?;
    }
    write!(stdout, "\x1b\\")?;
}
writeln!(stdout)?;

`ratatui`

enable_raw_mode()?;
let mut stdout = io::stdout();
execute!(
    stdout,
    EnterAlternateScreen,
    EnableMouseCapture,
    EnableSgrPixelMouse
)?;

let backend = CrosstermBackend::new(stdout);
let mut terminal = Terminal::new(backend)?;
terminal.hide_cursor()?;

let picker = Picker::from_query_stdio()?;
let mut app = App::new(picker);

let res = run_app(&mut terminal, &mut app);

// undo everything at the end…

`ratatui`

loop {
    terminal.draw(|f| {
        let area = f.area();
        self.resize_canvas(area);
        f.render_stateful_widget(StatefulImage::new(), area, &mut self.protocol);
    })?;

    match event::read()? {
        Event::Key(key) if key.kind == KeyEventKind::Press && key.code == KeyCode::Esc => break,
        Event::Mouse(mouse) => {
            let (mx, my) = (mouse.column, mouse.row);

            match mouse.kind {
                MouseEventKind::Down(MouseButton::Left) | MouseEventKind::Drag(MouseButton::Left) => {
                    if let Some((lx, ly)) = self.last_mouse_pos {
                        self.draw_line(lx, ly, mx, my);
                    } else {
                        self.draw_point(mx, my);
                    }
                    self.last_mouse_pos = Some((mx, my));

                    self.update_protocol();
                }
                MouseEventKind::Up(MouseButton::Left) => self.last_mouse_pos = None,
                _ => {}
            }
        }
        _ => {}
    }
}
